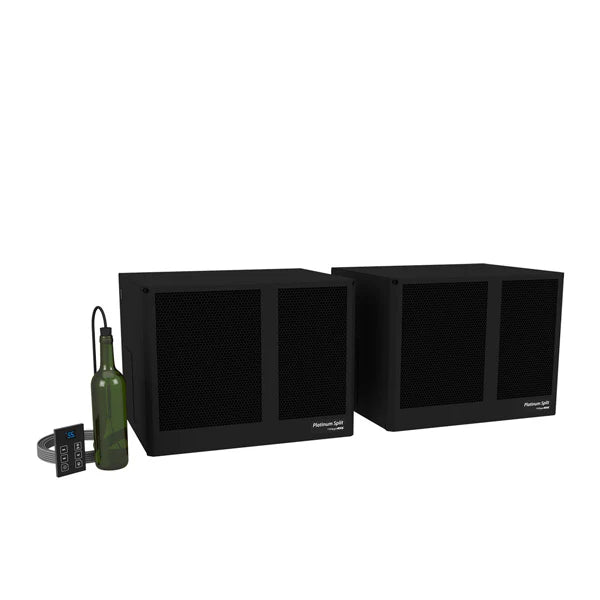

Twin Platinum Split - Ductless (220V Condenser) Wine Cooling Unit

Ductless split design with dual in-cellar evaporators for even airflow

High-efficiency 220V condenser unit for improved performance and energy savings

Cooling capacity to maintain 55 °F in cellars up to ~3,000 ft³ (varies by insulation and heat load)

Advanced KDT digital controller with liquid-temperature bottle probe

Quiet, low-vibration operation with multiple fan speed options

Flare fittings for easy, flexible line set installation (no on-site brazing)

Supports line set lengths up to 100 ft

Compatible with optional 24V thermostat integration (customer-supplied)

Optional UV-C lighting system add-on

Durable, corrosion-resistant coil and cabinet construction

Dual evaporator design maximizes large cellar coverage and racking flexibility

Cooling Capacity (approx.):

Up to 9,417 BTU/hr at 60 °F condenser air intake

Up to 8,636 BTU/hr at 75 °F condenser air intake

Up to 8,054 BTU/hr at 85 °F condenser air intake

Recommended Coverage: Up to ~3,000 ft³

Temperature Range: Adjustable setpoint 50–70 °F

Evaporator Dimensions (each): 16.1″ L × 20.5″ W × 15.5″ H

Condenser Dimensions: ~31″ L × 11″ W × 21″ H (typical H.E. condenser housing)

Refrigerant: R-134a

Electrical:

Evaporators: 120 V / 15 A dedicated circuit (each)

Condenser: 220 V / 15 A dedicated circuit

Weight: Evaporator ~54 lb each

Line Set: Liquid line 3/8″ OD; Suction line 5/8″ OD (<50 ft) or 3/4″ OD (>50 ft)

Drain Line: 1/2″ ID clear tubing (not provided; rigid recommended)

Max Ambient Intake: Up to 120 °F
