TTW018 Through the Wall Wine Cellar Cooling Unit - Wine Guardian - Jagged Ridge Wine Rooms

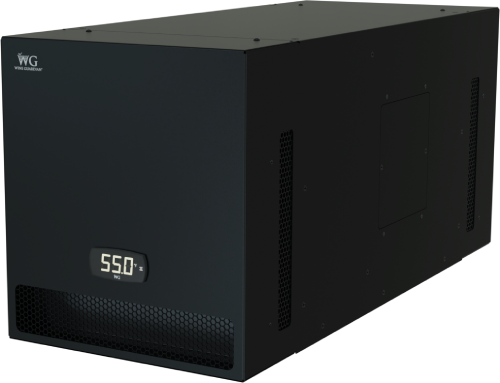

TTW Defender Through the Wall Wine Cellar Cooling Unit

Name: TTW Defender Through the Wall Wine Cellar Cooling Unit
Brand: Wine Guardian
Price: 7425.0 CAD
Availability: InStock

$7,425.00

For the most demanding wine cellar applications, the TTW Defender Series maintains ideal conditions in a wide range of environments, along with a variety of extra features.

Cooling Capacity: 1,000 – 4,000 BTU/h

BTU Capacity

1
2
3
4
5
6
7
8
9
10 +

Quantity

Shipping Information

Let Us Help

Not sure which product is right for you? Reach out and we'd be happy to help. Contact Us

Cooling Calculator

Input your project details our handy calculator to figure out what type of cooling system you need. Try The Calculator

The Wine Guardian TTW Series offers advanced through-the-wall cooling units designed for wine cellars and wine display applications. Whether you choose the Classic, Sentinel, or Defender model, you’ll benefit from eco-friendly refrigerants, whisper-quiet operation, Bluetooth connectivity, and fail-safe protections that safeguard your wine collection.

The TTW04B Defender is the premium model in the TTW lineup, offering expanded features for demanding applications. With a cooling capacity of 1,000 – 4,000 BTU/h, it is ideal for larger residential or commercial wine cellars requiring ultimate performance, control, and flexibility.

This unit is also easy to install, and can be installed on your own without the support of a contractor.

TTW Defender Through the Wall Wine Cellar Cooling Unit

$7,425.00

Features

Unrivaled Energy Efficiency: Optimized for maximum energy efficiency, the TTW can save you hundreds in electricity costs (up to 50-70% of your unit cost over its lifetime).
Whisper-Quiet Operation: Designed to limit vibrations and operational noise that disturb the ambience of your wine space, TTWs can be as quiet as 49 dB at 6 feet (2 meters).
Fail-Safe Protections: The TTW’s advanced fail-safe features protect your system and cellar from damage.
Precise Temp & Humidity: The TTW can achieve temperatures ranging from 55°F (13°C) to 58°F (14°C) and a relative humidity of 55%–65% with an optional free-standing humidifier.
DIY Installation: Installing the TTW is as simple as sliding the unit through the wall sleeve or mounting brackets. A licensed contractor is not required.
Eco-Friendly Refrigerant: Wine Guardian TTWs employ refrigerant with a low global warming potential in compliance with U.S. environmental regulations.

Defender Series Additional Features:

Ultra Quiet Package Additional sound reduction foam around grilles for extra quiet operation.
Exterior Wall Package: Exterior grille and coated condenser coil; 0°F (-18°C) to 125°F (52°C) ambient temp.
Electric Heater Heating: coil to warm cellar air when the temperature drops below the set point.
Sound Reduction Foam: Internal sound attenuation material to reduce operational noise.
Humidity Sensor: Combined thermostat and humidistat to allow seamless humidifier connection.
Condensate Evaporator: Re-evaporation system to prevent leakage without the need for a drain line

Product Brochure

Specs

Weight: 58 lbs
Dimensions: 27.6 × 14.1 × 15.8 in
Capacity: 830 – 1,485 BTU/h
Line Frequency: 60 Hz
Ductless/Ducted: Ductless
Plug Type: Plug Type B
Installation Level: Do-It-Yourself
Sound: 49.5 dBA
Electrical: 120/1/60
Notable Features: Bluetooth / NFC Controls, Noise Reduction, Extended Temperature Control Range
