Mini Platinum Split - Ductless (110V Condenser) Wine Cooling Unit
Compact ductless split system for cellars up to ~500 ft³. Quiet, space-saving, and highly accurate bottle-probe-based control.
Cooling Capacity: 2900 BTU/H
Let Us Help
Not sure which product is right for you? Reach out and we'd be happy to help. Contact Us
Cooling Calculator
Input your project details our handy calculator to figure out what type of cooling system you need. Try The Calculator

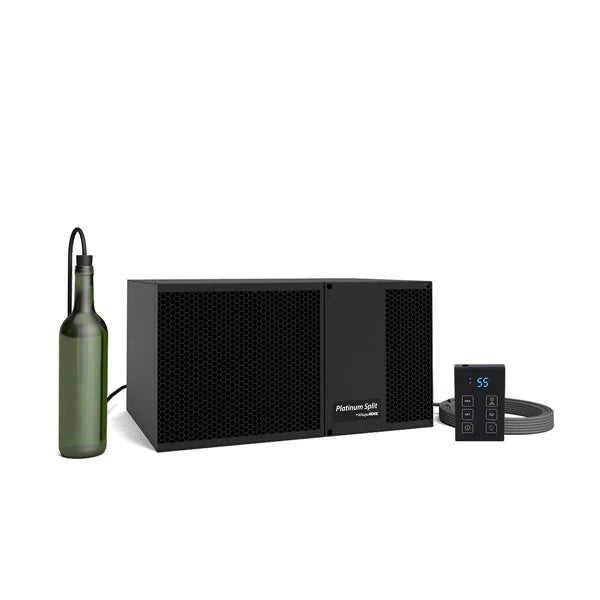

The WhisperKOOL Mini Platinum Split is a compact ductless split wine cellar cooling system designed for smaller cellars up to approximately 500 ft³, depending on insulation and heat load. Combining a quiet, wall-mounted evaporator with a separate condenser (Mini H.E.) unit, this system offers flexible installation and advanced bottle-probe-based temperature control for precise, stable cellar conditions.
Mini Platinum Split - Ductless (110V Condenser) Wine Cooling Unit
Features
Ductless split system with wall-mounted evaporator and remote condenser
Cooling capacity to maintain 55 °F in cellars up to ~500 ft³ (varies by insulation and ambient conditions)
Advanced KDT digital controller with liquid-temperature bottle probe for precise wine storage
Quiet, low-vibration evaporator ideal for residential and luxury spaces
Supports line set lengths up to 100 ft
Built-in condensate management system (requires drain line)
Variable fan speeds for airflow and noise optimization
Optional 24V thermostat integration (customer-supplied option)
Paintable decorative grille for seamless cellar integration
Includes mounting hardware, vibration isolators, and line set accessories
Specs
Cooling Capacity:
Approx. 1,800 – 2,900 BTU/hr (varies by condenser intake temperature)
Recommended Coverage: Up to ~500 ft³
Temperature Range: Adjustable setpoint 50–70 °F
Evaporator Dimensions: 13″ L × 20″ W × 10.5″ H
Condenser Dimensions: 31.18″ L × 10.75″ W × 21.18″ H
Refrigerant: R-134
Electrical:
Evaporator: 120 V / 15 A dedicated circuit
Condenser: 220 V / 15 A dedicated circuit
Weight:
Evaporator: 33 lb
Condenser: 50.7 lb
Line Set: Liquid line 1/4″ OD; Suction line 1/2″ OD (≤50 ft), 5/8″ OD (>50 ft)
Drain Line: 1/2″ ID clear tubing (not included; rigid recommended)
