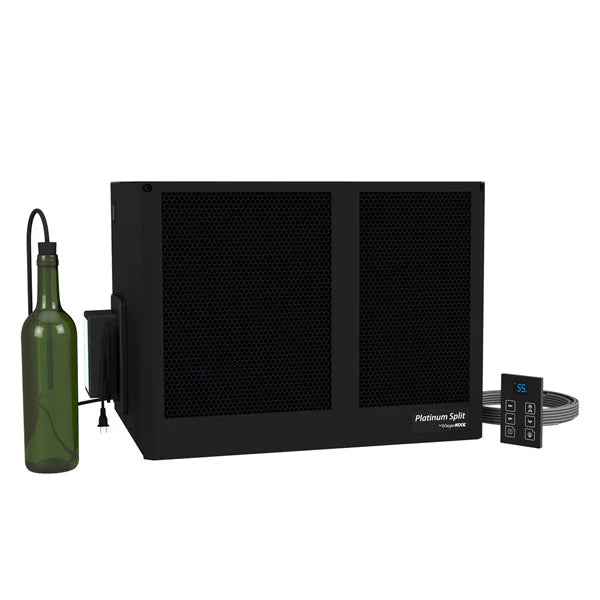

Platinum Split 4000 - Ductless (110V Condenser) Wine Cooling Unit

Ductless split system with interior wall-mounted evaporator and remote condenser

Cooling capacity to maintain 55 °F in cellars up to ~1,000 ft³ (varies by insulation and ambient conditions)

Advanced KDT digital controller with liquid-temperature-measuring bottle probe

Quiet, low-vibration evaporator design ideal for residential and luxury cellars

Can support line set lengths up to 100 feet

Built-in condensate management system (requires drain line)

Variable fan speeds for optimized airflow

Optional 24V thermostat integration (customer-supplied)

Paintable decorative grille for flexible cellar aesthetics

Includes mounting hardware, vibration isolators, and installation accessories

Cooling Capacity:

4,200 – 5,300 BTU/hr (varies by ambient condenser air intake temp)

Recommended Coverage: Up to ~1,000 ft³

Temperature Range: Adjustable setpoint 50–70 °F

Evaporator Dimensions: 16.1″ L × 20.5″ W × 15.5″ H

Condenser Dimensions: 31.18″ L × 10.75″ W × 21.18″ H

Refrigerant: R-134a

Electrical:

Evaporator: 120 V / 15 A dedicated circuit

Condenser: 220 V / 15 A dedicated circuit

Weight:

Evaporator: ~54 lb

Condenser: ~55 lb

Line Set: Liquid line 1/4″ OD; Suction line 1/2″ OD (≤50 ft), 5/8″ OD (>50 ft)

Drain Line: 1/2″ ID clear plastic tubing (not included)
