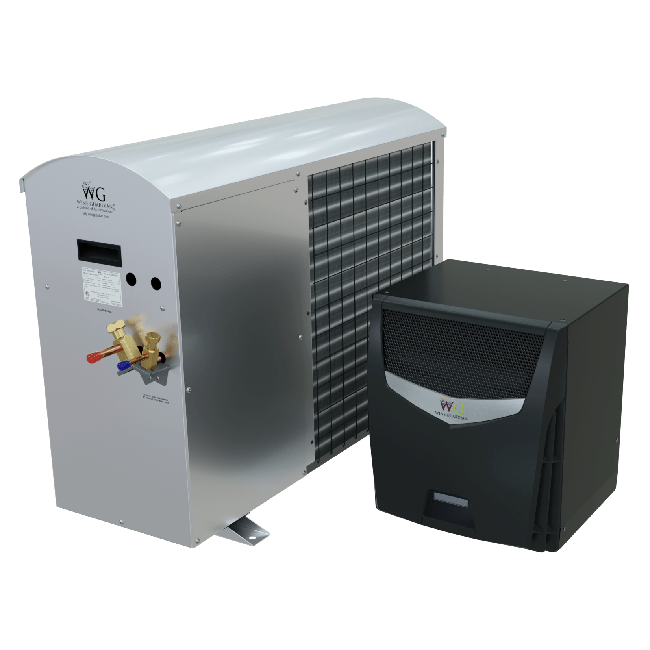

SS018 Ductless Wine Cellar Cooling Unit - Wine Guardian - Jagged Ridge Wine Rooms

SS018 Ductless Split Wine Cellar Cooling Unit

$10,647.00

Compact ductless split unit for discreet cooling in wine rooms up to 1,200 ft³. Delivers 400–2,800 BTU/hr with versatile mounting, optional low‑ambient, heating, and humidity control compatibility.


Cooling Capacity: 400–2,800


Let Us Help

Not sure which product is right for you? Reach out and we'd be happy to help. Contact Us

Cooling Calculator

Input your project details our handy calculator to figure out what type of cooling system you need. Try The Calculator


The Wine Guardian SS018 is a versatile ductless split cooling system engineered for small wine cellars up to 1,200 ft³ (≈ 34 m³). Ideal for spaces where mechanical rooms or ducting aren’t feasible, it offers both through‑the‑wall and surface‑mount installation options. With cooling capacity ranging from 400–2,800 BTU/hr, it maintains storage and serving temperatures (as low as 40 °F/4 °C), and supports optional add-ons like electric heat, low‑ambient operation, and humidity control to preserve your wine collection in any environment.

SS018 Ductless Split Wine Cellar Cooling Unit

$10,647.00
Features
  • Ductless split design for through‑the‑wall or surface mounting
  • Cooling capacity from 400–2,800 BTU/hr, adjustable via remote control
  • Designed for wine rooms of 100–1,200 ft³
  • Supports long‑term storage and serving temps (approx. 40–64 °F)
  • Optional Low Ambient kit operates to −20 °F
  • Optional Electric Heat coil for frost protection
  • Compatible with standalone humidifier for humidity management
  • Compact fan‑coil (25 lb) and separate condenser (75 lb) for flexible installation
  • Quiet, corrosion‑resistant, commercial‑grade construction
Specs
  • Cooling Capacity: 400–2,800 BTU/hr
  • Coverage Volume: 100–1,200 ft³
  • Electrical Requirements: 115 V/1 ph/60 Hz
  • Evaporator Dimensions: 13.31″ H × 14.25″ W × 15.87″ D (25 lb)
  • Condenser Dimensions: 34″ L × 12.3″ W × 26″ H (75 lb)
  • Operating Range: Evaporator 40–115 °F ambient; optional low‑ambient to −20 °F
  • Airflow: ~150 CFM
