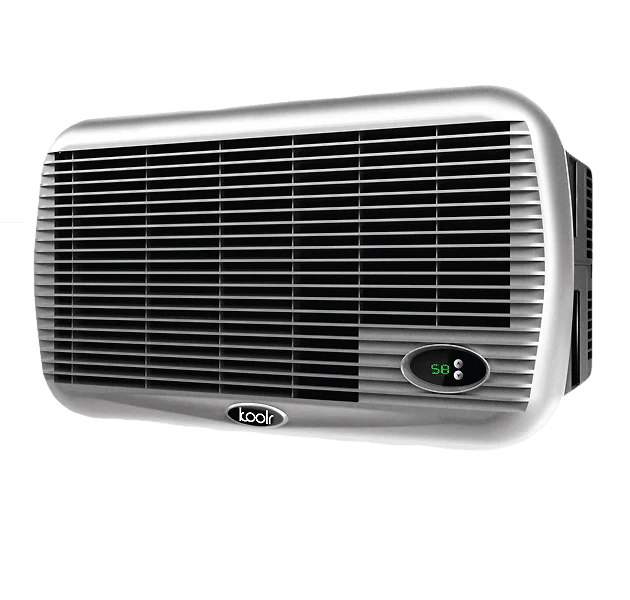

KoolR Plus (Magnum) Through The Wall Wine Cooling Unit

$1,600.99

Self-contained through-the-wall wine cooling system for cellars up to ~900 ft³. Quiet, efficient, and simple to install.


Cooling Capacity: 3000 BTU/H
Shipping Information

Let Us Help

Not sure which product is right for you? Reach out and we'd be happy to help. Contact Us

Cooling Calculator

Input your project details our handy calculator to figure out what type of cooling system you need. Try The Calculator

The KoolR Magnum is a self-contained, through-the-wall cooling system engineered for wine cellars up to approximately 900 ft³ (varies slightly depending on insulation and heat load). With an easy-to-install design and compact footprint, it offers quiet and reliable performance without the need for an external condenser or ducting. The unit operates as a one-piece system, venting warm air into an adjacent, ventilated interior space.

KoolR Plus (Magnum) Through The Wall Wine Cooling Unit

$1,600.99
Features

Self-contained, through-the-wall design — no external condenser or ducting required

Designed for quiet operation with vibration isolation

Temperature range adjustable from 53 °F to 64 °F (12 °C to 18 °C)

Digital temperature display and simple control interface

Corrosion-resistant chassis with coated coils

Condensate connection is provided and installation must follow the current manual/template

Interior airflow and racking guidelines to avoid blockage and ensure even cooling

Not compatible with VintageKeeper or WineKoolR cabinet cooling units

Warranty on KoolR Magnum units up to 1-year

Specs

Cooling Capacity: Up to ~3,000 BTU/hr (based on Magnum size; Piccolo is smaller)

Recommended Coverage: Up to 900 ft³ (depending on insulation and heat load)

Temperature Range: 53–64 °F

Electrical: 115 V / 1 ph / 60 Hz, 15-amp dedicated circuit

Unit Dimensions: Approx. 15.5″ W × 9.125″ H × 15″ D (exact measurement confirmed in manual)

Weight: Approx. 42 lb

Operating Ambient Range: 65–80°F, maximum 70% RH

Drain: Optional drain connection provided
