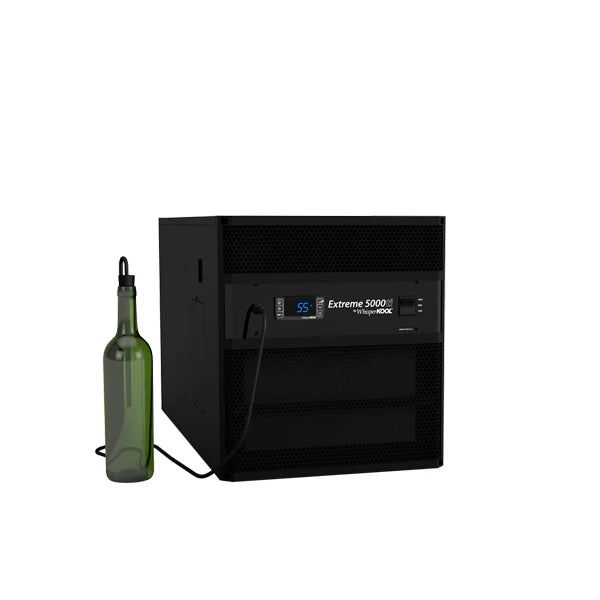

Extreme TI 5000 - Through-the-Wall Wine Cooling Unit

Self-contained through-the-wall or fully ducted design for flexible installation

Suitable for cellars up to ~1,250 ft³ (depending on insulation and ambient conditions)

Advanced digital controller with liquid-temperature bottle probe for precise temperature control

Multi-speed fan settings (Low, Medium, High) for airflow and noise customization

Anti-Frost Cycle to prevent coil icing

Automatic condensate management system with required drain line

Front/rear power inlet selector switch for flexible installation

Surge protection recommended (requires dedicated 115 V / 20 A circuit)

Durable, corrosion-resistant design for harsh conditions

Optional exterior grille for outdoor exhaust protection

Cooling Capacity:

3,099 BTU/hr (Low fan)

3,453 BTU/hr (Med fan)

4,126 BTU/hr (High fan)

Recommended Coverage: Up to ~1,250 ft³

Temperature Range: Adjustable setpoint 50–67 °F

Dimensions: 28″ L × 14.25″ W × 15.75″ H

Weight: 115 lb

Electrical: 115 V / 1 ph / 60 Hz, 20-amp dedicated circuit

Drain Line: 1/2″ ID clear plastic tubing (mandatory)

Refrigerant: R-134a

Airflow (CFM): 147 (Low), 180 (Med), 256 (High)

Sound (approx. in-cellar dBA): 51 (Low), 58 (Med), 66 (High)

Max Exhaust Ambient Temp: 110 °F
