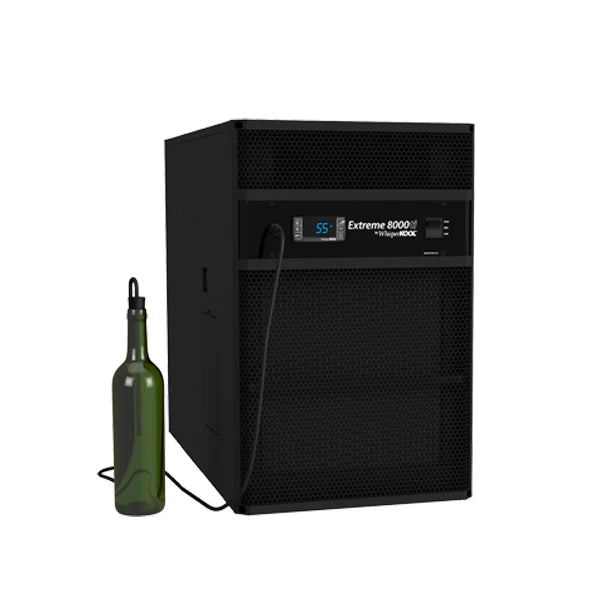

Extreme TI 8000 - Through-the-Wall Wine Cooling Unit

Self-contained through-the-wall or fully ducted installation flexibility

Suitable for cellars up to ~2,000 ft³ (varies by insulation and heat load)

Capable of maintaining a 55 °F cellar temperature even when exhaust room air reaches 110 °F

Advanced digital controller with liquid-temperature bottle probe for true wine storage accuracy

Multi-speed fan settings (Low, Medium, High) to optimize airflow and noise

Anti-Frost Cycle to prevent coil icing

Automatic condensate management system with mandatory drain line

Front/rear power inlet selector for installation flexibility

Durable, corrosion-resistant build for long-term reliability

Surge protection recommended (requires dedicated 115 V / 20 A circuit)

Cooling Capacity: Approx. 5,140 – 6,131 BTU/hr (depending on fan speed and ambient conditions)

Recommended Coverage: Up to ~2,000 ft³

Temperature Range: Adjustable setpoint 50–67 °F

Dimensions: 28″ L × 14.25″ W × 22.5″ H

Weight: 115 lb

Electrical: 115 V / 1 ph / 60 Hz, 20-amp dedicated circuit

Drain Line: 1/2″ ID clear plastic tubing (mandatory)

Refrigerant: R-134a

Sound Levels (approx.):

In cellar: 57 dBA (Low), 59 dBA (Med), 60 dBA (High)

Airflow (CFM): 274 (Low), 318 (Med), 333 (High)

Max Exhaust Ambient Temp: 110 °F
