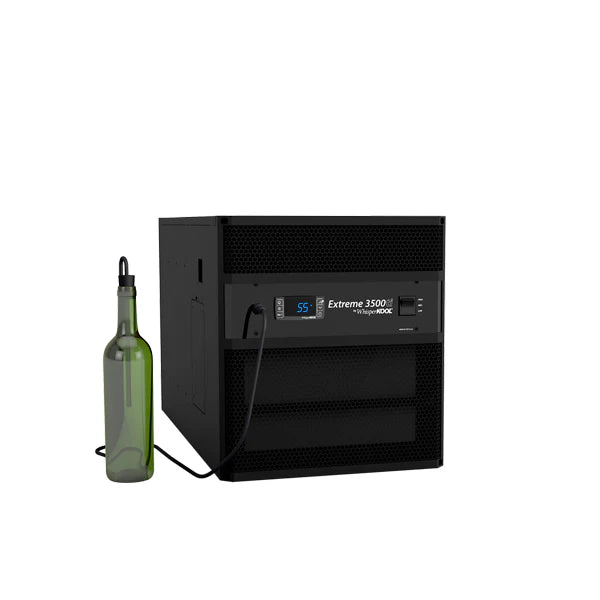

Extreme TI 3500 - Through-the-Wall Wine Cooling Unit

Self-contained through-the-wall or fully ducted installation options

Designed for cellars up to ~800 ft³ (varies by insulation and heat load)

Cooling capacity to maintain 55 °F even with exhaust room temps up to 110 °F

Advanced digital controller with liquid-temperature bottle probe

Multi-speed fan settings (Low, Medium, High) for airflow optimization

Anti-Frost Cycle to prevent coil icing

Automatic condensate management system with mandatory drain line

Front/rear power input selector switch for flexible installation

Surge protection recommended (requires dedicated 115 V / 20 A circuit)

Exterior grille available for outdoor exhaust protection

Durable, corrosion-resistant design for harsh conditions

Cooling Capacity: Approx. 2,374 – 3,175 BTU/hr (varies with fan speed and ambient conditions)

Recommended Coverage: Up to ~800 ft³

Temperature Range: Adjustable setpoint 50–67 °F

Dimensions: 28″ L × 14.25″ W × 15.75″ H

Weight: 115 lb

Electrical: 115 V / 1 ph / 60 Hz, 20-amp dedicated circuit

Drain Line: 1/2″ ID clear plastic tubing (mandatory)

Refrigerant: R-134a

Sound (approx. in-cellar dBA): 51 (Low), 58 (Med), 66 (High)

Airflow: 147 – 256 CFM (depending on fan speed)
